Looking at yourself


Linux introspection tales


Arnaldo Carvalho de Melo
acme@redhat.com

What is this about?



  • Type information
  • Introspection
  • Adaptation

shrinking sockets



  • Linux 2.4
  • struct sock
  • Big union
  • All protocols

shrunk socket



  • Reduce CPU cache utilization
  • Remove alignment holes
  • Reorder struct fields
  • Combine some bitfields
  • Demote others
  • To better pack

socket hierarchy



  • struct sock
  • struct tcp_sock
  • struct tcp6_sock
  • struct udp_sock
  • And all the others

Neverending story


Date: Mon Nov 15 11:02:37 2021 -0800
From: Eric Dumazet

Move sk_bind_phc next to sk_peer_lock to fill a hole.

@@ -489,5 +489,6 @@  struct sock {
 	u16			sk_busy_poll_budget;
 #endif
 	spinlock_t		sk_peer_lock;
+	int			sk_bind_phc;
 	struct pid		*sk_peer_pid;
 	const struct cred	*sk_peer_cred;
@@ -498,5 +499,4 @@  struct sock {
 	seqlock_t		sk_stamp_seq;
 #endif
 	u16			sk_tsflags;
-	int			sk_bind_phc;
 	u8			sk_shutdown;

Some more


$ git log -2 --oneline 1ace2b4d2b4e1db8f
1ace2b4d2b4e1db8 net: shrink struct sock by 8 bytes
1b31debca8328448 ipv6: shrink struct ipcm6_cookie
$

Tedious



  • Manual
  • Can we automate this?
  • gdb knows about types, how?

DWARF



  • Debugging With Arbitrary Record Formats
  • Executable and Linkable Format's friend
  • More recently we got ORC too

pahole



  • Read DWARF
  • Rebuild source from type info
  • Augmented with alignment info
  • Showing the holes
  • Cacheline boundaries
  • Lots more

Example


$ pahole -C list_head ~/git/build/v5.18-rc6+/vmlinux
struct list_head {
	struct list_head *         next;                 /*     0     8 */
	struct list_head *         prev;                 /*     8     8 */

	/* size: 16, cachelines: 1, members: 2 */
	/* last cacheline: 16 bytes */
};
$

CERN ATLAS Migration



  • 32-bit to 64-bit
  • C++
  • long/pointer: 32 to 64-bit

An alignment hole


# pahole -C _IO_FILE ~/bin/perf | head
struct _IO_FILE {
	int                        _flags;               /*     0     4 */

	/* XXX 4 bytes hole, try to pack */

	char *                     _IO_read_ptr;         /*     8     8 */
	char *                     _IO_read_end;         /*    16     8 */
	char *                     _IO_read_base;        /*    24     8 */
	char *                     _IO_write_base;       /*    32     8 */
	char *                     _IO_write_ptr;        /*    40     8 */
#

pahole --reorganize



  • To elliminate holes
  • Demotes bitfields
  • show-reorg-steps
  • __alignment__ attribute
  • false sharing

pahole --reorganize 2



  • DWARF now has attribute align
  • Use that in the reorg algo

--reorganize example


$ pahole --reorganize task_struct | tail
    /* --- cacheline 142 boundary (9088 bytes) was 56 bytes ago --- */
    struct thread_struct thread __attribute__((__aligned__(64))); /* 9144 4416 */

    /* size: 13560, cachelines: 212, members: 252 */
    /* sum members: 13487, holes: 2, sum holes: 57 */
    /* sum bitfield members: 79 bits, bit holes: 2, sum bit holes: 49 bits */
    /* paddings: 6, sum paddings: 49 */
    /* forced alignments: 2, forced holes: 1, sum forced holes: 56 */
    /* last cacheline: 56 bytes */
};  /* saved 136 bytes and 2 cachelines! */
$

CTF



  • Dtrace
  • Solaris
  • In the kernel image
  • Introspection
  • SparcLinux

Multi-format



  • Type info agnostic
  • DWARF and CTF
  • CTF reader
  • CTF encoder

Conversion



  • From DWARF to CTF
  • For testing

DWARF problems



  • kernel community problems with unwinding
  • object files: Compile Units
  • All types represented per CU
  • debuginfo files are big
  • hundreds of megabytes

BPF needs type info



  • To pretty print maps
  • Later: CO-RE

BTF



  • BPF Type Format
  • Reused the CTF infra in pahole
  • First BTF producer: clang bpf target
  • First BTF consumer: Linux kernel

BPF dedup



  • Looks at all objects
  • Removes type duplicates

BTF reader



  • For testing
  • /sys/kernel/btf/vmlinux
  • Wow, that is fast!

pahole + btf



  • Its always there
  • So inform just the type

pahole + btf


$ pahole spinlock_t
typedef struct spinlock spinlock_t;
$

pahole + btf


$ pahole spinlock
struct spinlock {
	union {
		struct raw_spinlock rlock;               /*     0     4 */
	};                                               /*     0     4 */

	/* size: 4, cachelines: 1, members: 1 */
	/* last cacheline: 4 bytes */
};
$

Expand it!

$ pahole -E spinlock
struct spinlock {
    union {
        struct raw_spinlock {
            /* typedef arch_spinlock_t */ struct qspinlock {
                union {
                    /* typedef atomic_t */ struct {
                        int            counter;                                       /* 0  4 */
                    } val;                                                            /* 0  4 */
                    struct {
                        /* typedef u8 -> __u8 */ unsigned char  locked;               /* 0  1 */
                        /* ypedef u8 -> __u8 */ unsigned char  pending;               /* 1  1 */
                    };                                                                /* 0  2 */
                    struct {
                        /* typedef u16 -> __u16 */ short unsigned int locked_pending; /* 0  2 */
                        /* typedef u16 -> __u16 */ short unsigned int tail;           /* 2  2 */
                    };                                                                /* 0  4 */
                };                                                                    /* 0  4 */
            } raw_lock;                                                               /* 0  4 */
         } rlock;                                                                     /* 0  4 */
    };                                                                                /* 0  4 */
    /* size: 4, cachelines: 1, members: 1 */
    /* last cacheline: 4 bytes */
};
$

Where is it?



  • libbpf loads it
  • kernel verifies
  • Gets associated to the prog/map fd
  • Tools can retrieve it

bpftool bpf


  • Generates vmlinux.h
  • With all kernel types
bpftool btf dump file /sys/kernel/btf/vmlinux format c

pahole --compile



  • Reconstruct compilable source code
  • Like bpftool

Where else?



  • /sys/kernel/btf/
  • vmlinux and modules
  • modules refer to types in vmlinux

program lines



  • .BTF_ext ELF section
  • perf annotate
  • BPF source code

Adaptability: Use case


Author: Namhyung Kim
Date:   Wed May 18 15:47:23 2022 -0700

  perf record: Handle argument change in sched_switch

  Recently sched_switch tracepoint added a new argument for
  prev_state, but it's hard to handle the change in a BPF
  program.  Instead, we can check the function prototype in
  BTF before loading the program.

Adaptability: Tool loader


static void check_sched_switch_args(void)
{
       struct btf *btf = bpf_object__btf(skel->obj);
       struct btf_type *t1, *t2, *t3;
       u32 type_id = btf__find_by_name_kind(btf, "bpf_trace_sched_switch",
       					    BTF_KIND_TYPEDEF);
       t1 = btf__type_by_id(btf, type_id);
       t2 = btf__type_by_id(btf, t1->type);

       if (t3 && btf_is_func_proto(t3) && btf_vlen(t3) == 4) {
               // new format: pass prev_state as 4th arg
               skel->rodata->has_prev_state = true;
       }
}

Adaptability: BPF skel change

+++ b/tools/perf/util/bpf_skel/off_cpu.bpf.c

+const volatile bool has_prev_state = false;

+SEC("tp_btf/sched_switch")
+int on_switch(u64 *ctx) {
+	struct task_struct *prev, *next;
+	int prev_state;
+
+	if (!enabled) return 0;

+	prev = (struct task_struct *)ctx[1];
+	next = (struct task_struct *)ctx[2];
+
+	if (has_prev_state)
+		prev_state = (int)ctx[3];
+	else
+		prev_state = get_task_state(prev);
+	return off_cpu_stat(ctx, prev, next, prev_state);
+}

Running it


# perf record --off-cpu
^C[ perf record: Woken up 1924 times to write data ]
[ perf record: Captured and wrote 483.936 MB perf.data (8857075 samples) ]

# ls -la perf.data
-rw-------. 1 root root 507845510 May 31 00:45 perf.data
#

Observing it


# bpftool prog | grep on_switch -A4
634: tracing  name on_switch  tag 3d6d5a513a933c28  gpl
  loaded_at 2022-05-30T22:37:17+0200  uid 0
  xlated 1392B jited 913B memlock 4096B map_ids 497,498,493,494,495,490,491,492
  btf_id 602
  pids perf(393176)
#

Show me the code

# bpftool prog dump jited id 634
int on_switch(u64 * ctx):
bpf_prog_3d6d5a513a933c28_on_switch:
; int on_switch(u64 *ctx)
   0:   nopl   0x0(%rax,%rax,1)
   5:   xchg   %ax,%ax
   7:   push   %rbp
   8:   mov    %rsp,%rbp
   b:   sub    $0x38,%rsp
  12:   push   %rbx
  13:   push   %r13
  15:   push   %r14
  17:   push   %r15
  19:   mov    %rdi,%r15
; if (!enabled)
  1c:   movabs $0xffffb53a400d2000,%rdi
  26:   mov    0x0(%rdi),%edi
; if (!enabled)
  29:   test   %rdi,%rdi
  2c:   je     0x0000000000000386

Show me the code: 2

; next = (struct task_struct *)ctx[2];
  32:   mov    0x10(%r15),%r14
; prev = (struct task_struct *)ctx[1];
  36:   mov    0x8(%r15),%rbx
; if (has_prev_state)
  3a:   movabs $0xffffb53a400f6000,%rdi
  44:   movzbq 0x0(%rdi),%rdi
; prev_state = (int)ctx[3];
  49:   mov    $0x1,%edi
; if (bpf_core_field_exists(t->__state))
  4e:   mov    $0x18,%edi
  53:   mov    %rbx,%rdx
  56:   add    %rdi,%rdx
  59:   mov    %rbp,%rdi
;
  5c:   add    $0xffffffffffffffd8,%rdi
; return BPF_CORE_READ(t, __state);
  60:   mov    $0x4,%esi
  65:   callq  0xffffffffd5f13f50
; return BPF_CORE_READ(t, __state);
  6a:   mov    -0x28(%rbp),%r13d

Where are the maps


# bpftool map | grep off_cpu -A3
490: array  name off_cpu_.rodata  flags 0x480
	key 4B  value 3B  max_entries 1  memlock 4096B
	btf_id 628  frozen
	pids perf(393176)
#

Its contents


# bpftool map dump id 490
[{
        "value": {
            ".rodata": [{
                    "has_prev_state": false
                },{
                    "needs_cgroup": false
                },{
                    "uses_cgroup_v1": false
                }
            ]
        }
    }
#

The feature


# perf report --stdio --call-graph=no
# Childr  Self Command         Shared Object      Symbol
# ...... ...... ............... .................. .........................
  81.66%  0.00% sched-messaging libc-2.33.so       [.] __libc_start_main
  81.66%  0.00% sched-messaging perf               [.] cmd_bench
  81.66%  0.00% sched-messaging perf               [.] main
  81.66%  0.00% sched-messaging perf               [.] run_builtin
  81.43%  0.00% sched-messaging perf               [.] bench_sched_messaging
  40.86% 40.86% sched-messaging libpthread-2.33.so [.] __read
  37.66% 37.66% sched-messaging libpthread-2.33.so [.] __write
   2.91%  2.91% sched-messaging libc-2.33.so       [.] __poll
...

    As you can see it spent most of off-cpu time in read and write in
    bench_sched_messaging().  The --call-graph=no was added just to make
    the output concise here.

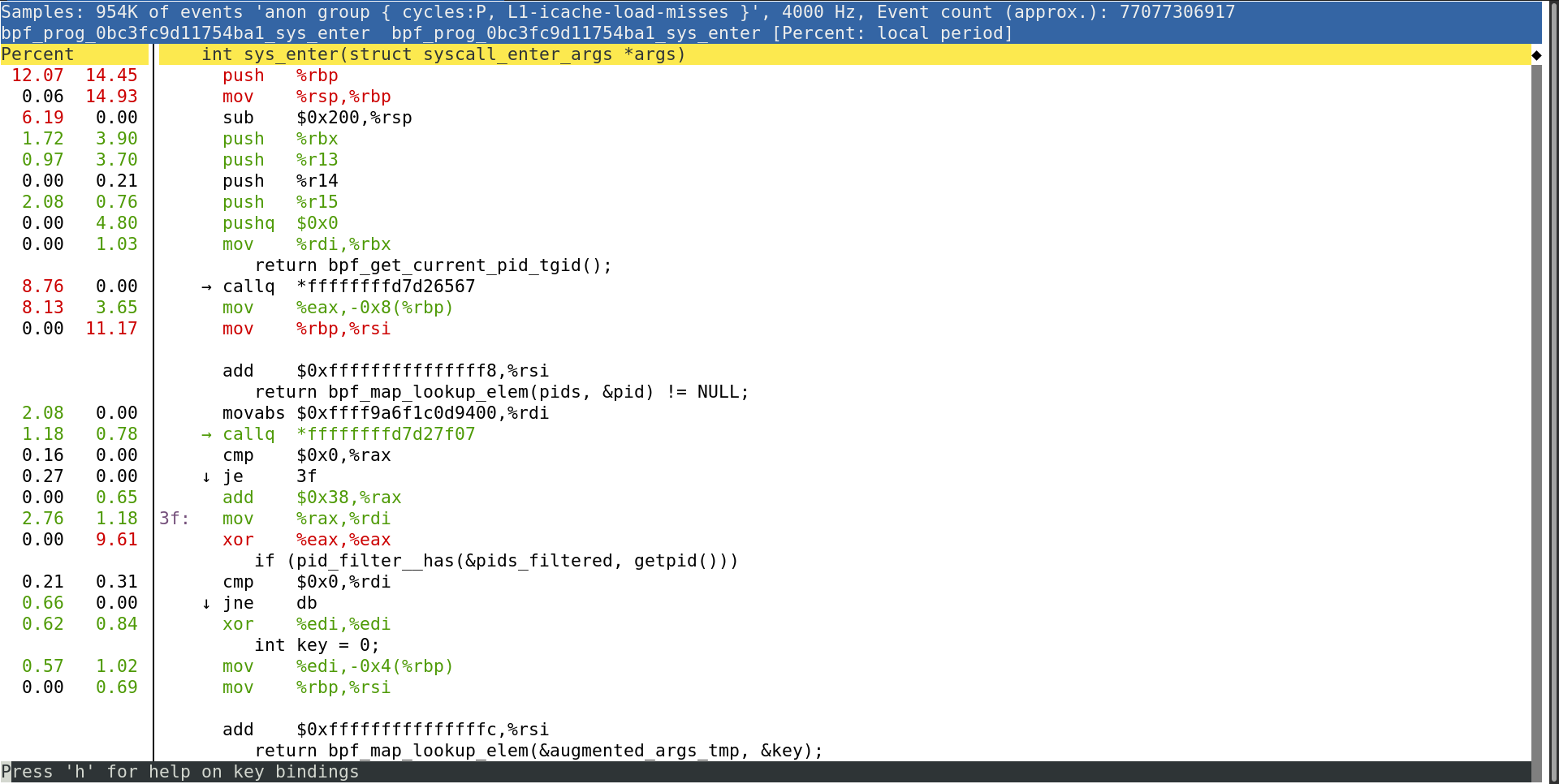

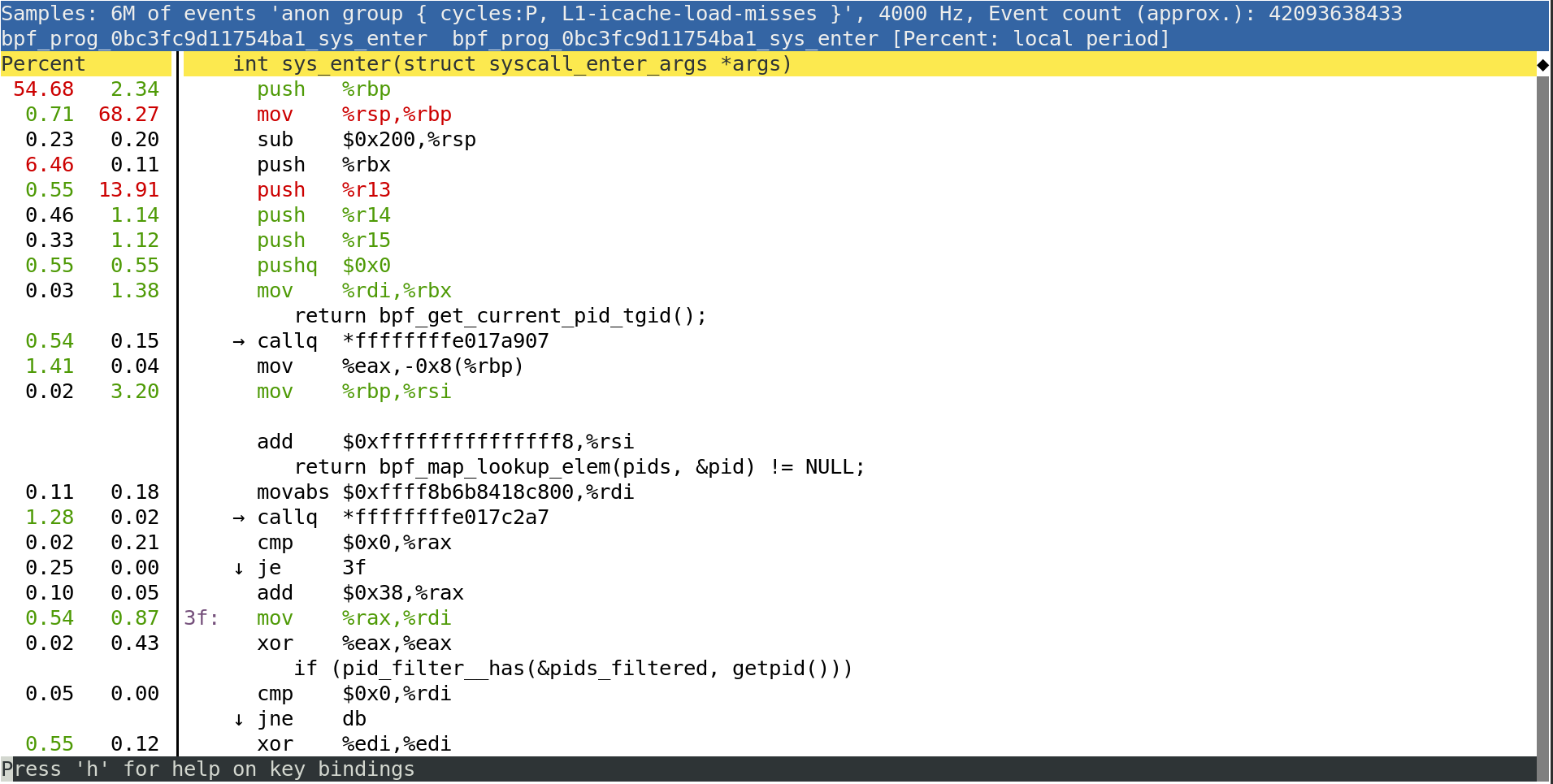

perf annotate
nospectre_v1 + nospectre_v2

pahole in the kernel build


  LD [M]  drivers/media/usb/gspca/gspca_zc3xx.o
  AR      drivers/media/built-in.a
  AR      drivers/built-in.a
  GEN     .version
  CHK     include/generated/compile.h
  LD      vmlinux.o
  MODPOST vmlinux.symvers
  MODINFO modules.builtin.modinfo
  GEN     modules.builtin
  CC      .vmlinux.export.o
  LD      .tmp_vmlinux.btf
  BTF     .btf.vmlinux.bin.o
  LD      .tmp_vmlinux.kallsyms1
  KSYMS   .tmp_vmlinux.kallsyms1.S
  AS      .tmp_vmlinux.kallsyms1.S
  LD      .tmp_vmlinux.kallsyms2
  KSYMS   .tmp_vmlinux.kallsyms2.S
  AS      .tmp_vmlinux.kallsyms2.S
  LD      vmlinux

Modules too


  LD [M]  arch/x86/kvm/kvm-amd.ko
  BTF [M] arch/x86/kernel/cpu/mce/mce-inject.ko
  BTF [M] arch/x86/events/rapl.ko
  LD [M]  arch/x86/kvm/kvm-intel.ko
  LD [M]  arch/x86/kvm/kvm.ko
  BTF [M] arch/x86/kvm/kvm-amd.ko
  LD [M]  crypto/adiantum.ko
  BTF [M] crypto/adiantum.ko
  BTF [M] arch/x86/kvm/kvm-intel.ko
  LD [M]  crypto/aegis128.ko
  BTF [M] crypto/aegis128.ko
  LD [M]  crypto/aes_ti.ko
  BTF [M] arch/x86/kvm/kvm.ko

New BPF/BTF features



  • pahole as an enabler
  • Eventually compilers will produce BTF
  • But you have to dedup when generating vmlinux
  • Generate BTF info for VARs after linking
  • Covenient when developing new features

BTF tags



  • clang generates new DWARF tags
  • pahole converts to BTF_KIND_TAG
  • kernel BPF verifier uses
  • __rcu, percpu, etc

Kernel build pahole capability query

$ cat scripts/pahole-flags.sh
#!/bin/sh
if [ "${pahole_ver}" -ge "118" ] && [ "${pahole_ver}" -le "121" ]; then
	# pahole 1.18 through 1.21 can't handle zero-sized per-CPU vars
	extra_paholeopt="${extra_paholeopt} --skip_encoding_btf_vars"
fi
if [ "${pahole_ver}" -ge "121" ]; then
	extra_paholeopt="${extra_paholeopt} --btf_gen_floats"
fi
if [ "${pahole_ver}" -ge "122" ]; then
	extra_paholeopt="${extra_paholeopt} -j"
fi

echo ${extra_paholeopt}
$ scripts/pahole-flags.sh
--btf_gen_floats -j
$
pahole --version
v1.23
$

Rust



  • reordering of struct fields
  • pahole --reorganize done by rust
  • rejected by kernel BTF verifier
  • kernel build: pahole --lang_exclude rust
  • pahole should put fields in order instead
  • when generating BTF for rust kernel objects
  • DWARF compile_unit tag has DW_AT_producer

DWARF langs


static const char *languages[] = {
  [DW_LANG_Ada83]          = "ada83",
SNIP
  [DW_LANG_C11]            = "c11",
  [DW_LANG_C89]            = "c89",
  [DW_LANG_C99]            = "c99",
  [DW_LANG_C]              = "c",
  [DW_LANG_Cobol74]        = "cobol74",
SNIP
  [DW_LANG_C_plus_plus_14] = "c++14",
  [DW_LANG_C_plus_plus]    = "c++",
  [DW_LANG_D]              = "d",
  [DW_LANG_Dylan]          = "dylan",
  [DW_LANG_Fortran03]      = "fortran03",
SNIP
  [DW_LANG_PLI]            = "pli",
  [DW_LANG_Python]         = "python",
  [DW_LANG_RenderScript]   = "renderscript",
  [DW_LANG_Rust]           = "rust",
};

pretty printing in the kernel



  • bpf_seq_printf_btf
  • bpf_snprintf_btf BPF helper

bpf_snprintf_btf helper


            static struct btf_ptr b = { };

            b.ptr = skb;
            b.type_id = __builtin_btf_type_id(struct sk_buff, 1);
            bpf_snprintf_btf(str, sizeof(str), &b, sizeof(b), 0, 0);

bpf_snprintf_btf helper


    Default output looks like this:

    (struct sk_buff){
     .transport_header = (__u16)65535,
     .mac_header = (__u16)65535,
     .end = (sk_buff_data_t)192,
     .head = (unsigned char *)0x000000007524fd8b,
     .data = (unsigned char *)0x000000007524fd8b,
     .truesize = (unsigned int)768,
     .users = (refcount_t){
      .refs = (atomic_t){
       .counter = (int)1,
      },
     },
    }

Flags


    Flags modifying display are as follows:

    - BTF_F_COMPACT:        no formatting around type information
    - BTF_F_NONAME:         no struct/union member names/types
    - BTF_F_PTR_RAW:        show raw (unobfuscated) pointer values;
                            equivalent to %px.
    - BTF_F_ZERO:           show zero-valued struct/union members;
                            they are not displayed by default

pahole pretty printing


$ pahole --prettify=- --header elf64_hdr < /bin/bash
{
	.e_ident = { 127, 69, 76, 70, 2, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0 },
	.e_type = 3,
	.e_machine = 62,
	.e_version = 1,
	.e_entry = 204224,
	.e_phoff = 64,
	.e_shoff = 1388016,
	.e_flags = 0,
	.e_ehsize = 64,
	.e_phentsize = 56,
	.e_phnum = 13,
	.e_shentsize = 64,
	.e_shnum = 32,
	.e_shstrndx = 31,
},
$

Its in the kernel BTF

$ pahole elf64_hdr
struct elf64_hdr {
	unsigned char              e_ident[16];          /*     0    16 */
	Elf64_Half                 e_type;               /*    16     2 */
	Elf64_Half                 e_machine;            /*    18     2 */
	Elf64_Word                 e_version;            /*    20     4 */
	Elf64_Addr                 e_entry;              /*    24     8 */
	Elf64_Off                  e_phoff;              /*    32     8 */
	Elf64_Off                  e_shoff;              /*    40     8 */
	Elf64_Word                 e_flags;              /*    48     4 */
	Elf64_Half                 e_ehsize;             /*    52     2 */
	Elf64_Half                 e_phentsize;          /*    54     2 */
	Elf64_Half                 e_phnum;              /*    56     2 */
	Elf64_Half                 e_shentsize;          /*    58     2 */
	Elf64_Half                 e_shnum;              /*    60     2 */
	Elf64_Half                 e_shstrndx;           /*    62     2 */

	/* size: 64, cachelines: 1, members: 14 */
};
$

BTFgen



  • For older kernels
  • Generates kernel eBPF needed by a prog
  • Modified libbpf looks at it as the kernel BPF
  • Does its CO-RE work

Tetragon



  • Cilium
  • Security
  • BTF required
  • N-level filtering

THE END
