BPF is Eating the World, Don't you see?

How to see it

Arnaldo Carvalho de Melo
http://vger.kernel.org/~acme/perf
acme@redhat.com
Red Hat Inc.

What this is about

BPF is blossoming
Flexibility
Performance
Inovation
But...
How to debug it?
How to inspect it?
How to profile it?

What is eBPF?

Restricted: checks everything
Initially no loops, now accepts bounded loops
Can only call some kernel helpers
Kernel verifier
JITed BPF indistinguishable from kernel C code
Program Types: XDP, tracing, IR, etc
Map types: array, hash, stack, lpm_trie, etc
Documentation/bpf/bpf_design_QA.rst

How does it look like?

Restricted C
clang BPF target
ASM macros
Event based
Maps
BPF-to-BPF
BPF-to/from-userspace
perf ring buffer
bpf_trace_printk

Restricted C

-- terminal 1 --
$ cat tools/perf/examples/bpf/5sec.c
#include <bpf.h>

int probe(hrtimer_nanosleep, rqtp->tv_sec)(void *ctx, int err, long sec)
{
	return sec == 5;
}

license(GPL);
$
-- terminal 2 --
# perf trace -e tools/perf/examples/bpf/5sec.c
     0.000 sleep/3280 perf_bpf_probe:hrtimer_nanosleep:(ffffffff8c160f30) tv_sec=5
-- terminal 3 --
# sleep 5

BPF ASM macros

$ cat src/libsystemd-network/dhcp-network.c
// Filter out everything except UDP packets destined for the DHCP client port
int dhcp_network_bind_raw_socket(int index, union sockaddr_union *link)
{
 struct sock_filter filter[] = {
 BPF_STMT(BPF_LD + BPF_B + BPF_ABS, offset(DHCPkt, ip.prot)),// A <- IP prot
 BPF_JUMP(BPF_JMP + BPF_JEQ + BPF_K, IPPROTO_UDP, 1, 0),     // IP prot = UDP?
 BPF_STMT(BPF_RET + BPF_K, 0),                               // ignore
 BPF_STMT(BPF_LD + BPF_H + BPF_ABS, offset(DHCPkt, udp.dst)),// A < UDP dst port
 BPF_JUMP(BPF_JMP + BPF_JEQ + BPF_K, DHCP_PORT_CLNT, 1, 0),  // UDP dst=DHCP clnt?
 BPF_STMT(BPF_RET + BPF_K, 0),                               // ignore
 BPF_STMT(BPF_RET + BPF_K, 65535),                           // return all
 };
 struct sock_fprog fprog = {
 .len = ELEMENTSOF(filter),
 .filter = filter
 };
 if (setsockopt(s, SOL_SOCKET, SO_ATTACH_FILTER, &fprog, sizeof(fprog)) < 0) {
         return -errno;
 }

Some eBPF program types

BPF_PROG_TYPE_SOCKET_FILTER
BPF_PROG_TYPE_KPROBE
BPF_PROG_TYPE_TRACEPOINT
BPF_PROG_TYPE_XDP
BPF_PROG_TYPE_PERF_EVENT
BPF_PROG_TYPE_LIRC_MODE2
BPF_PROG_TYPE_CGROUP_SKB
BPF_PROG_TYPE_CGROUP_SYSCTL

Some eBPF map types

BPF_MAP_TYPE_HASH
BPF_MAP_TYPE_ARRAY
BPF_MAP_TYPE_PROG_ARRAY
BPF_MAP_TYPE_PERF_EVENT_ARRAY
BPF_MAP_TYPE_PERCPU_HASH
BPF_MAP_TYPE_STACK_TRACE
BPF_MAP_TYPE_LPM_TRIE
BPF_MAP_TYPE_SOCKMAP
BPF_MAP_TYPE_QUEUE
BPF_MAP_TYPE_STACK

Some eBPF map functions

void *bpf_map_lookup_elem(struct bpf_map *, void *key)
void *bpf_map_update_elem(struct bpf_map *, void *key)
void *bpf_map_delete_elem(struct bpf_map *, void *key)

Some eBPF id functions

u64 bpf_get_current_uid_gid(void)
u64 bpf_get_current_pid_tgid(void)
int bpf_get_current_comm(char *buf, buflen)

Some XDP functions

int bpf_redirect(u32 ifindex, u64 flags)
int bpf_perf_event_output(ctx, map, flags, void *data, size)
int bpf_redirect_map(map, u32 key, u64 flags)
int bpf_fib_lookup(ctx, fib_lookup *params, plen, flags)

Fault injection

int bpf_override_return(pt_reg *regs, u64 rc)
Uses kprobes to change the return value
Of probed function

Infrared decoding

Use BPF to program IR receiver
int bpf_rc_keydown(void *ctx, u32 protocol, u64 scancode, u32 toggle)
int bpf_rc_keydown(void *ctx, u32 protocol, u64 scancode, u32 toggle)
https://lwn.net/Articles/755752/
https://www.mess.org/2019/03/05/How-to-add-support-for-a-new-remote-using-lircd-conf-file/

Where is it being used?

High speed networking
Firewalls
Tracing
In-kernel metrics
Flexible Filtering
Configured thru maps
Decide early on

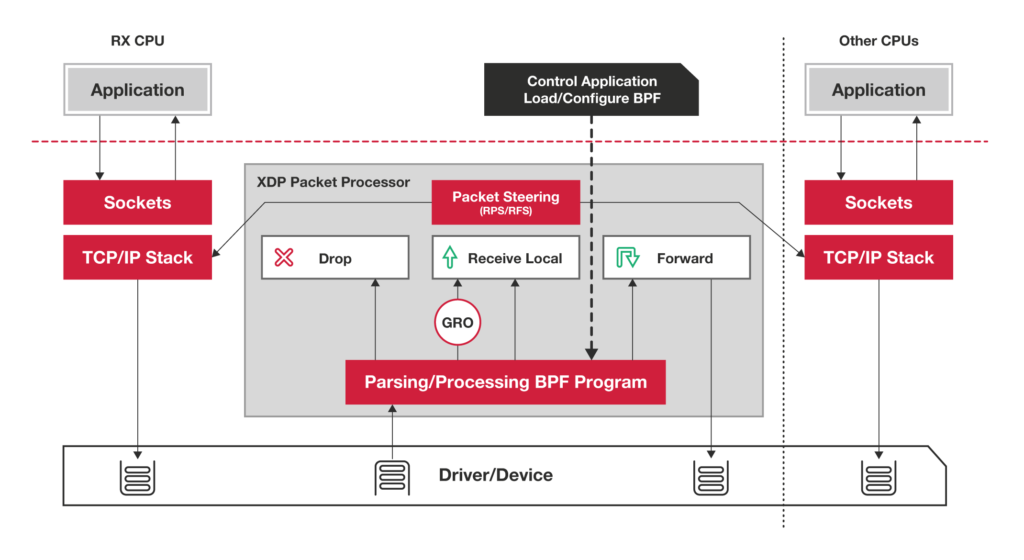

XDP

eXpress Data Path
High performance packet drop/redirect
DDoS filter/Firewalling
Can be offloaded to smart NICs
Custom packet handling close to hardware
Selectively bypass the stack/DPDK
Chaining of programs: tail calling
Debuggability
http://vger.kernel.org/netconf2019_files/friendlier-xdp-redirect.pdf

cilium

container networking
Avoid kernel/usespace transitions
Don't traverse net stack multiple times
https://docs.cilium.io/en/v1.5/bpf/

Tracing

BPF as the observer
Filter data at origin
Reduce volume of data
Maps
bcc
bpftrace
dtrace on steroids

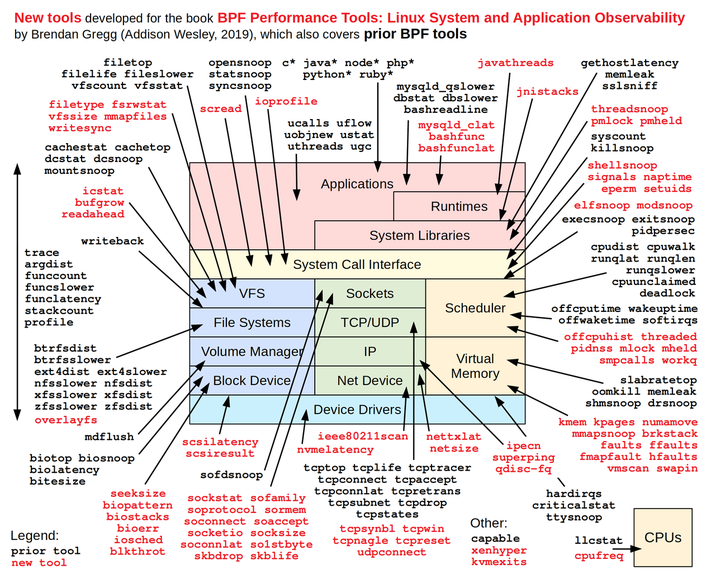

Brendan Gregg's book

systemd

Per-unit IP access lists and accounting
Uses BPF_PROG_TYPE_CGROUP_SKB
Uses BPF_MAP_TYPE_LPM_TRIE
In kernel aggregated metrics
No need for new kernel code

systemd + eBPF

# systemd-run -p IPAccounting=1 -t /bin/sh
Running as unit: run-u50630.service
Press ^] three times within 1s to disconnect TTY.
sh-5.0#

systemd + eBPF: accounting

# systemd-run -p IPAccounting=1 -t /bin/sh
Running as unit: run-u50630.service
Press ^] three times within 1s to disconnect TTY.
sh-5.0# systemctl status run-u50630.service
● run-u50630.service - /bin/sh
   Loaded: loaded (/run/systemd/transient/run-u50630.service; transient)
Transient: yes
   Active: active (running) since Mon 2019-07-29 15:58:39 -03; 1min 4s ago
 Main PID: 9975 (sh)
       IP: 0B in, 0B out
    Tasks: 3 (limit: 4915)
   Memory: 2.7M
   CGroup: /system.slice/run-u50630.service
           ├─ 9975 /bin/sh
           ├─21423 systemctl status run-u50630.service
           └─21424 less

Jul 29 15:58:39 quaco systemd[1]: Started /bin/sh.
sh-5.0#

systemd + eBPF: traffic

sh-5.0# ping 1.1.1.1
PING 1.1.1.1 (1.1.1.1) 56(84) bytes of data.
64 bytes from 1.1.1.1: icmp_seq=1 ttl=59 time=35.1 ms
64 bytes from 1.1.1.1: icmp_seq=2 ttl=59 time=34.9 ms
^C
--- 1.1.1.1 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 2ms
rtt min/avg/max/mdev = 34.939/34.996/35.054/0.195 ms
sh-5.0# systemctl status run-u50630.service
● run-u50630.service - /bin/sh
   Loaded: loaded (/run/systemd/transient/run-u50630.service; transient)
Transient: yes
   Active: active (running) since Mon 2019-07-29 15:58:39 -03; 7min ago
 Main PID: 9975 (sh)
       IP: 168B in, 168B out
    Tasks: 3 (limit: 4915)
   Memory: 42.6M
   CGroup: /system.slice/run-u50630.service
           ├─ 9975 /bin/sh
           ├─13952 systemctl status run-u50630.service
           └─13961 less

Jul 29 15:58:39 quaco systemd[1]: Started /bin/sh.
sh-5.0#

systemd + eBPF: block addresses

# systemd-run -p IPAddressDeny=1.1.1.1 -t /bin/sh
Running as unit: run-u50655.service
Press ^] three times within 1s to disconnect TTY.
sh-5.0# ping -c 2 8.8.8.8
PING 8.8.8.8 (8.8.8.8) 56(84) bytes of data.
64 bytes from 8.8.8.8: icmp_seq=1 ttl=56 time=34.9 ms
64 bytes from 8.8.8.8: icmp_seq=2 ttl=56 time=34.9 ms

--- 8.8.8.8 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 3ms
rtt min/avg/max/mdev = 34.915/34.925/34.936/0.187 ms
sh-5.0# ping -c 2 1.1.1.1
PING 1.1.1.1 (1.1.1.1) 56(84) bytes of data.
ping: sendmsg: Operation not permitted
ping: sendmsg: Operation not permitted
^C
--- 1.1.1.1 ping statistics ---
2 packets transmitted, 0 received, 100% packet loss, time 52ms

sh-5.0#

How could I see that?

# bpftool prog | tail -6
4179: cgroup_skb  tag 780fbe87f94e0e9e  gpl
	loaded_at 2019-07-29T16:09:05-0300  uid 0
	xlated 176B  jited 127B  memlock 4096B  map_ids 2893
4180: cgroup_skb  tag a1b93ab7d85e4bae  gpl
	loaded_at 2019-07-29T16:09:05-0300  uid 0
	xlated 176B  jited 127B  memlock 4096B  map_ids 2893
# bpftool map | tail -2
2893: lpm_trie  flags 0x1
	key 8B  value 8B  max_entries 1  memlock 4096B
#

Map dump

# bpftool map dump id 2893
key: 20 00 00 00 01 01 01 01  value: 02 00 00 00 00 00 00 00
Found 1 element
#

/* Key of an a BPF_MAP_TYPE_LPM_TRIE entry */
struct bpf_lpm_trie_key {
        __u32   prefixlen;      /* up to 32 for AF_INET, 128 for AF_INET6 */
        __u8    data[0];        /* Arbitrary size */
};

eBPF bytecode

# bpftool prog dump xlated tag a1b93ab7d85e4bae
   0: (bf) r6 = r1
   1: (69) r7 = *(u16 *)(r6 +176)
   2: (b4) w8 = 0
   3: (55) if r7 != 0x8 goto pc+14
   4: (bf) r1 = r6
   5: (b4) w2 = 12
   6: (bf) r3 = r10
   7: (07) r3 += -4
   8: (b4) w4 = 4
   9: (85) call bpf_skb_load_bytes#6588432
  10: (18) r1 = map[id:2893]
  12: (bf) r2 = r10
  13: (07) r2 += -8
  14: (62) *(u32 *)(r2 +0) = 32
  15: (85) call trie_lookup_elem#108128
  16: (15) if r0 == 0x0 goto pc+1
  17: (44) w8 |= 2
  18: (b7) r0 = 1
  19: (55) if r8 != 0x2 goto pc+1
  20: (b7) r0 = 0
  21: (95) exit
#

eBPF JITed code

# bpftool prog dump jit tag a1b93ab7d85e4bae
0xffffffffc0b1c1dc:
   0:	push   %rbp
   1:	mov    %rsp,%rbp
   4:	sub    $0x8,%rsp
   b:	push   %rbx
   c:	push   %r13
   e:	push   %r14
  10:	push   %r15
  12:	pushq  $0x0
  14:	mov    %rdi,%rbx
  17:	movzwq 0xb0(%rbx),%r13
  1f:	xor    %r14d,%r14d
  22:	cmp    $0x8,%r13
  26:	jne    0x0000000000000068
  28:	mov    %rbx,%rdi
  2b:	mov    $0xc,%esi
  30:	mov    %rbp,%rdx
  33:	add    $0xfffffffffffffffc,%rdx
  37:	mov    $0x4,%ecx
#

eBPF JITed code 2

  3c:	callq  0xffffffffcbd1efe4
  41:	movabs $0xffff8d98eb1edd00,%rdi
  4b:	mov    %rbp,%rsi
  4e:	add    $0xfffffffffffffff8,%rsi
  52:	movl   $0x20,0x0(%rsi)
  59:	callq  0xffffffffcb6f0e34
  5e:	cmp    $0x0,%rax
  62:	je     0x0000000000000068
  64:	or     $0x2,%r14d
  68:	mov    $0x1,%eax
  6d:	cmp    $0x2,%r14
  71:	jne    0x0000000000000075
  73:	xor    %eax,%eax
  75:	pop    %rbx
  76:	pop    %r15
  78:	pop    %r14
  7a:	pop    %r13
  7c:	pop    %rbx
  7d:	leaveq
  7e:	retq
#

Facebook's Katran

Network Load Balancer
L4
Before: IPVS
Now: XDP + BPF
Open Sourced
https://code.fb.com/open-source/open-sourcing-katran-a-scalable-network-load-balancer/

BTF

BPF Type Format
Types, Source/line information
Function names/signatures
pahole generates kernel BTF from DWARF
Uses libbpf to dedup types
Makes it always available via sysfs
Like CFI/.eh_frame for unwinding
Documentation/bpf/btf.rst

sys_bpf & BTF

libbpf notices .BTF ELF section
parses it
Uses BPF_BTF_LOAD command
Kernel validates it
Tools use BPF_OBJ_GET_INFO_BY_FD

Pretty Printing of BPF maps

Retrieve map's BTF info with BPF_OBJ_GET_INFO_BY_FD
bpftool
pretty print each of the elements

BPF maps

struct syscall {
        bool    enabled;
	u16     string_args_len[6];
};

bpf_map(syscalls, ARRAY, int, struct syscall, 512);

BPF maps: expanded

struct syscall {
        bool    enabled;
	u16     string_args_len[6];
 };

struct bpf_map __attribute__((section("maps"),  used)) syscalls = {
       .type        = BPF_MAP_TYPE_ARRAY,
       .key_size    = sizeof(int),
       .value_size  = sizeof(struct syscall),
       .max_entries = 512,
};
struct ____btf_map_syscalls {
       int key;
       struct syscall value;
};
struct ____btf_map_syscalls __attribute__((section(".maps.syscalls"), used))
       ____btf_map_syscalls = { }

perf trace

BPF to collect syscall pointer payloads
BPF maps for filtering
And for telling what to collect

Putting a bpf prog + maps in place

# perf trace -a -e nanosleep sleep 100h
sleep/15623 nanosleep(0x7ffccede8990, NULL)      ...
gpm/14747 nanosleep(0x7ffdd64c5790, 0x7ffdd64c5790) ...
podman/17195 nanosleep(0x7f144a3f0ba8, NULL)         = 0

bpftool progs

# bpftool prog | grep tracepoint -A3
4214: tracepoint  name sys_enter  tag f173133dc38ccf87  gpl
	loaded_at 2019-07-29T16:43:06-0300  uid 0
	xlated 1344B  jited 813B  memlock 4096B  map_ids 2928,2927,2926,2925
	btf_id 1619
4215: tracepoint  name sys_exit  tag c1bd85c092d6e4aa  gpl
	loaded_at 2019-07-29T16:43:06-0300  uid 0
	xlated 256B  jited 162B  memlock 4096B  map_ids 2927,2926
	btf_id 1619
#

bpftool maps

# bpftool map | egrep perf_ -A20
2925: perf_event_array  name __augmented_sys  flags 0x0
	key 4B  value 4B  max_entries 8  memlock 4096B
2926: array  name syscalls  flags 0x0
	key 4B  value 14B  max_entries 512  memlock 12288B
	btf_id 1619
2927: hash  name pids_filtered  flags 0x0
	key 4B  value 1B  max_entries 64  memlock 8192B
	btf_id 1619
2928: percpu_array  name augmented_filen  flags 0x0
	key 4B  value 4168B  max_entries 1  memlock 36864B
	btf_id 1619
#

Dumping contents of a map

# grep -w nanosleep /tmp/build/perf/arch/x86/include/generated/asm/syscalls_64.c
	[35] = "nanosleep",
#

Dumping contents of a map

# bpftool map dump id 2926 | head -40 | tail -10
key: 1e 00 00 00  value: 00 00 00 00 00 00 00 00  00 00 00 00 00 00
key: 1f 00 00 00  value: 00 00 00 00 00 00 00 00  00 00 00 00 00 00
key: 20 00 00 00  value: 00 00 00 00 00 00 00 00  00 00 00 00 00 00
key: 21 00 00 00  value: 00 00 00 00 00 00 00 00  00 00 00 00 00 00
key: 22 00 00 00  value: 00 00 00 00 00 00 00 00  00 00 00 00 00 00
key: 23 00 00 00  value: 01 00 00 00 00 00 00 00  00 00 00 00 00 00
key: 24 00 00 00  value: 00 00 00 00 00 00 00 00  00 00 00 00 00 00
key: 25 00 00 00  value: 00 00 00 00 00 00 00 00  00 00 00 00 00 00
key: 26 00 00 00  value: 00 00 00 00 00 00 00 00  00 00 00 00 00 00
key: 27 00 00 00  value: 00 00 00 00 00 00 00 00  00 00 00 00 00 00
#

Dumping contents of a map with BTF

# bpftool map dump id 2926 | grep '"key": 35,' -B1 -A13
    },{
        "key": 35,
        "value": {
            "enabled": true,
            "string_args_len": [0,0,0,0,0,0
            ]
        }
    },{
        "key": 36,
        "value": {
            "enabled": false,
            "string_args_len": [0,0,0,0,0,0
            ]
        }
    },{
#

bpftool map lookup

# bpftool map lookup id 2951 key 35
Error: key expected 4 bytes got 1
[root@quaco ~]# bpftool map lookup id 2951 key 35 00 00 00
{
    "key": 35,
    "value": {
        "enabled": true,
        "string_args_len": [0,0,0,0,0,0
        ]
    }
}
#

Generating BTF info

DaveM notices CTF in a Solaris kernel image
Hands me an initial .h with the main definitions
pahole gets refactored to support multiple formats
CTF being the first DWARF companion
10 years later: BPF needs this
BTF
llvm generates it as well, directly

pahole BTF encoder

Implemented by Martin Lau @ FB
Starting from ctf_loader.c
dwarf loader
Reads DWARF tags
Intermediate format
BTF encoder uses it
Inserts a new .BTF ELF section

Encoding

$ cat test.c
struct A {
	char b;
	int  a;
};

int test(struct A *t)
{
	return t->a;
}
$ gcc -g -c test.c
$ file test.o
test.o: ELF 64-bit LSB relocatable, x86-64, version 1 (SYSV), with debug_info, not stripped
$

DWARF ELF sections

$ readelf -SW test.o | grep \.debug
  [Nr] Name                Type     Addr Off Size
  [ 4] .debug_info         PROGBITS 0000 051  94
  [ 5] .rela.debug_info    RELA     0000 408  d8
  [ 6] .debug_abbrev       PROGBITS 0000 0e5  84
  [ 7] .debug_aranges      PROGBITS 0000 169  30
  [ 8] .rela.debug_aranges RELA     0000 4e0  30
  [ 9] .debug_line         PROGBITS 0000 199  40
  [10] .rela.debug_line    RELA     0000 510  18
  [11] .debug_str          PROGBITS 0000 1d9  69
$

pahole using DWARF

$ pahole test.o
struct A {
	char                       b;         /* 0  1 */

	/* XXX 3 bytes hole, try to pack */

	int                        a;         /* 4  4 */

	/* size: 8, cachelines: 1, members: 2 */
	/* sum members: 5, holes: 1, sum holes: 3 */
	/* last cacheline: 8 bytes */
};
$

pahole encoding BTF

$ pahole -JV test.o
File test.o:
[1] STRUCT A kind_flag=0 size=8 vlen=2
	b type_id=2 bits_offset=0
	a type_id=3 bits_offset=32
[2] INT char size=1 bit_offset=0 nr_bits=8 encoding=(none)
[3] INT int size=4 bit_offset=0 nr_bits=32 encoding=SIGNED
[4] PTR (anon) type_id=1
$

BTF ELF section

$ readelf -SW test.o | grep \.BTF
  [Nr] Name    Type     Addr Off Size
  [19] .BTF    PROGBITS 0000 619  7f
$

clang 8 generating BTF

$ clang -target bpf -g -c test.c
$ file test.o
test.o: ELF 64-bit LSB relocatable, eBPF, version 1 (SYSV), with debug_info, not stripped
$ readelf -SW test.o | grep \.BTF
  [Nr] Name          Type     Addr Off Size
  [ 8] .BTF          PROGBITS 0000 23d  dd
  [ 9] .BTF.ext      PROGBITS 0000 31a  68
  [10] .rel.BTF.ext  REL      0000 670  40
$

pahole BTF loader

Reads BTF tags
Intermediate format
pretty prints

pahole decoding BTF

$ pahole -F btf test.o
struct A {
	char                       b;         /*     0     1 */

	/* XXX 3 bytes hole, try to pack */

	int                        a;         /*     4     4 */

	/* size: 8, cachelines: 1, members: 2 */
	/* sum members: 5, holes: 1, sum holes: 3 */
	/* last cacheline: 8 bytes */
};
$

kernel loading BTF

libbpf notices __btf_map_MAP_NAME
In a ".maps." prefixed ELF section
Collects that BTF data
sys_bpf(fd, BPF_BTF_LOAD, btf_data)

btf_map(name)

#define bpf_map(name, _type, type_key, type_val, _max_entries)  \
struct bpf_map SEC("maps") name = {                             \
        .type        = BPF_MAP_TYPE_##_type,                    \
        .key_size    = sizeof(type_key),                        \
        .value_size  = sizeof(type_val),                        \
        .max_entries = _max_entries,                            \
};                                                              \
struct ____btf_map_##name {                                     \
        type_key key;                                           \
        type_val value;                                         \
};                                                              \
struct ____btf_map_##name __attribute__((section(".maps." #name), used)) \
        ____btf_map_##name = { }

kernel validates BTF

Validates header
BTF_MAGIC
BTF_VERSION
flags

Some validations performed

$ grep btf_verifier_log kernel/bpf/btf.c
    btf_verifier_log(env, "Exceeded max num of types");
    btf_verifier_log_type(env, t, "nr_bits exceeds %zu",
    btf_verifier_log_type(env, t, "nr_bits exceeds type_size");
    btf_verifier_log_type(env, t, "Unsupported encoding");
    btf_verifier_log_type(env, t, "Invalid type_id");
    btf_verifier_log_type(env, t, "Invalid name");
    btf_verifier_log_type(env, t, "Invalid btf_info kind_flag");
    btf_verifier_log_type(env, t, "Expected size:%zu",
    btf_verifier_log_type(env, t, "Loop detected");
    btf_verifier_log(env, "Unaligned type_off");
    btf_verifier_log(env, "No type found");
    btf_verifier_log(env, "String section is not at the end");
    btf_verifier_log(env, "Invalid string section");
    btf_verifier_log(env, "Section overlap found");
    btf_verifier_log(env, "Total section length too long");
    btf_verifier_log(env, "Unsupported section found");
    btf_verifier_log(env, "hdr_len not found");
    btf_verifier_log(env, "btf_header not found");
    btf_verifier_log(env, "Unsupported btf_header");
    btf_verifier_log(env, "Invalid magic");
    btf_verifier_log(env, "Unsupported version");
    btf_verifier_log(env, "Unsupported flags");
$

kernel validating BTF (excerpts)

# perf ftrace -G '*btf*' perf trace -e *sleep sleep 1
 7)               |  bpf_btf_load() {
 7)               |    capable() {
 7)   1.527 us    |    }
 7)               |    btf_new_fd() {
 7)   0.101 us    |      btf_sec_info_cmp();
 7)               |      btf_struct_check_meta() {
 7)   0.135 us    |        btf_name_valid_identifier.isra.12();
 7)   0.109 us    |        __btf_verifier_log_type();
 7)   0.107 us    |        btf_name_valid_identifier.isra.12();
 7)   0.108 us    |        btf_verifier_log_member();
 7)   3.642 us    |      }
 7)               |      btf_int_check_meta() {
 7)   0.100 us    |        __btf_verifier_log_type();
 7)   0.315 us    |      }
 7)               |      btf_ref_type_check_meta()
 7) + 49.743 us   |  }

btfdiff

pahole -F btf file.o
pahole -F dwarf --flat_arrays file.o
diff them
Should produce the same results
Regression tests

fullcircle

pfunct --compile file.o
Using BTF or DWARF
Build resulting file
codiff debug info in both
Should match
Again: regression tests

Encoding multiple CUs

Compile Unit
Encode just one .BTF section
For multiple object files
Like vmlinux
Bump the IDs of types
To make them unique
Deduplicate later

Deduplication

Done by Andrii @ FB
In libbpf
Huge reduction of BTF type info wrt DWARF
Algorithm described in blog post
URL in last slide

vmlinux BTF in kbuild

CONFIG_DEBUG_INFO_BTF
Uses pahole >= v1.13
Encoding BTF from DWARf
DWARF: ~195 MiB
BTF dedup'ed: ~2 MiB
Does it at the end

pahole

BTF breaths new life
The CTF work finally paid out
Helps validating BTF encoding
Generates compilable code
Matching original
DWARF5 DW_AT_alignment
__attribute__((__packed__)) detection
Much faster with BTF

alignment(N))

$ pahole -C task_struct ../build/v5.1-rc4+/vmlinux | tail
    /* --- cacheline 103 boundary (6592 bytes) --- */
    refcount_t                 stack_refcount;       /* 6600     4 */

    /* XXX 4 bytes hole, try to pack */

    void *                     security;             /* 6608     8 */

    /* XXX 40 bytes hole, try to pack */

    /* --- cacheline 104 boundary (6656 bytes) --- */
    struct thread_struct thread __attribute__((__aligned__(64))); /* 6656 4352 */

    /* size: 11008, cachelines: 172, members: 207 */
    /* sum members: 10902, holes: 16, sum holes: 98 */
    /* sum bitfield members: 10 bits, bit holes: 2, sum bit holes: 54 bits */
    /* paddings: 3, sum paddings: 14 */
    /* forced alignments: 6, forced holes: 1, sum forced holes: 40 */
} __attribute__((__aligned__(64)));

CO-RE - Compile once, run everywhere

Use BTF in BPF programs
And the vmlinux .BTF section
To figure out if ABI changed
New clang feat: relocation field offset records
__builtin_preserve_access_index(x)
Move operands while loading
To new offset or refuse loading
https://lkml.kernel.org/r/20190730195408.670063-1-andriin@fb.com

Further BTF uses

BPF spinlocks
socket local storage
Will allow ss to dump local storage

Visibility of BPF in perf

PERF_RECORD_KSYMBOL
PERF_RECORD_BPF_EVENT
perf.data
Live in 'perf top'
Allows Annotation
Initial code in v5.1

PERF_RECORD_KSYMBOL

struct ksymbol_event {
	struct perf_event_header header;
	u64 addr;
	u32 len;
	u16 ksym_type;
	u16 flags;
	char name[KSYM_NAME_LEN];
	/* sample_type: PERF_SAMPLE_TID, PERF_SAMPLE_TIME */
};

PERF_RECORD_BPF_EVENT

struct bpf_event {
	struct perf_event_header header;
	u16 type; /* PERF_BPF_EVENT_PROG_LOAD or UNLOAD */
	u16 flags;
	u32 id;

	/* for bpf_prog types */
	u8 tag[BPF_TAG_SIZE];  // prog tag
};

perf record

thread listening to BPF_EVENT
Uses BPF_OBJ_GET_INFO_BY_FD
Uses sys_bpf(BPF_OBJ_GET_INFO_BY_FD)
sys_bpf(BPF_BTF_GET_FD_BY_ID)
sys_bpf(BPF_OBJ_GET_INFO_BY_FD)

What is there?

Types
Function prototypes
Original BPF bytecode
JITed code
Source code line/ins pairing

What to do with that

Annotation using binutil's libopcodes
Special handling of BPF spinlocks in annotation
Ditto for other features using BTF

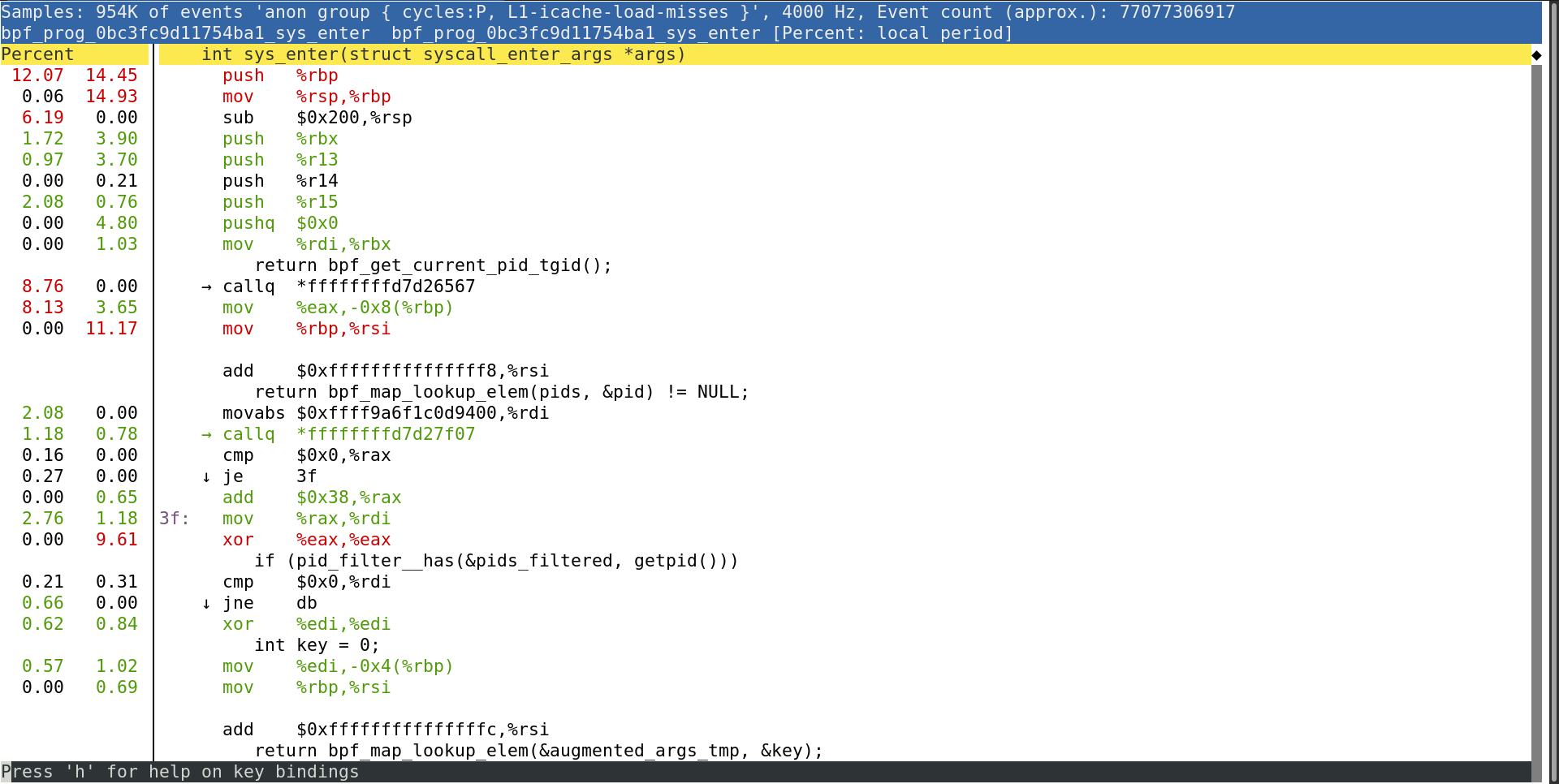

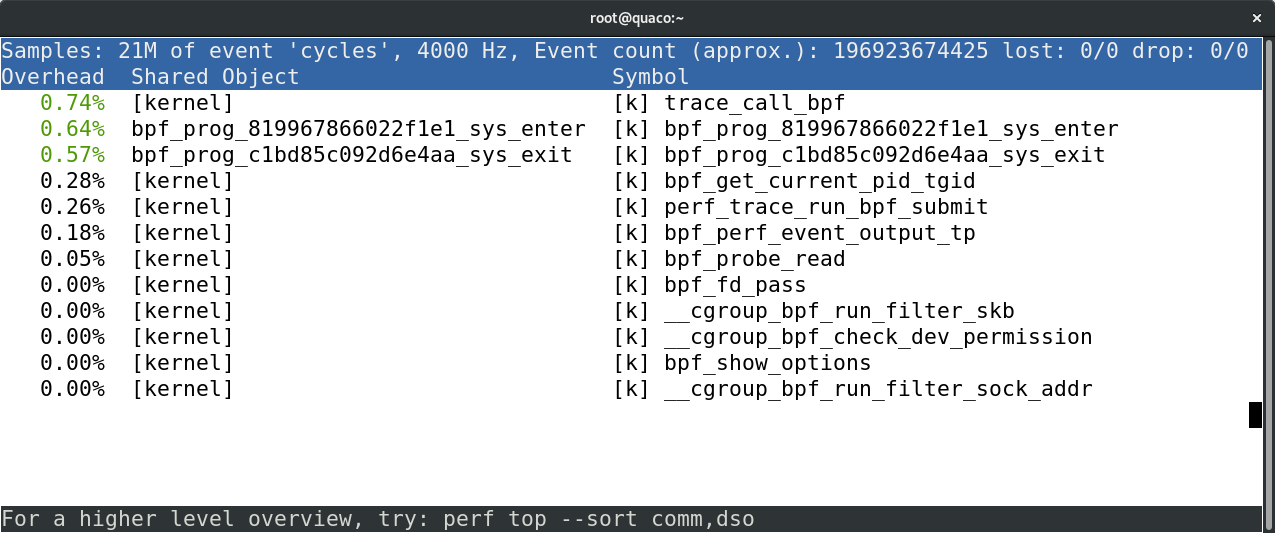

perf top

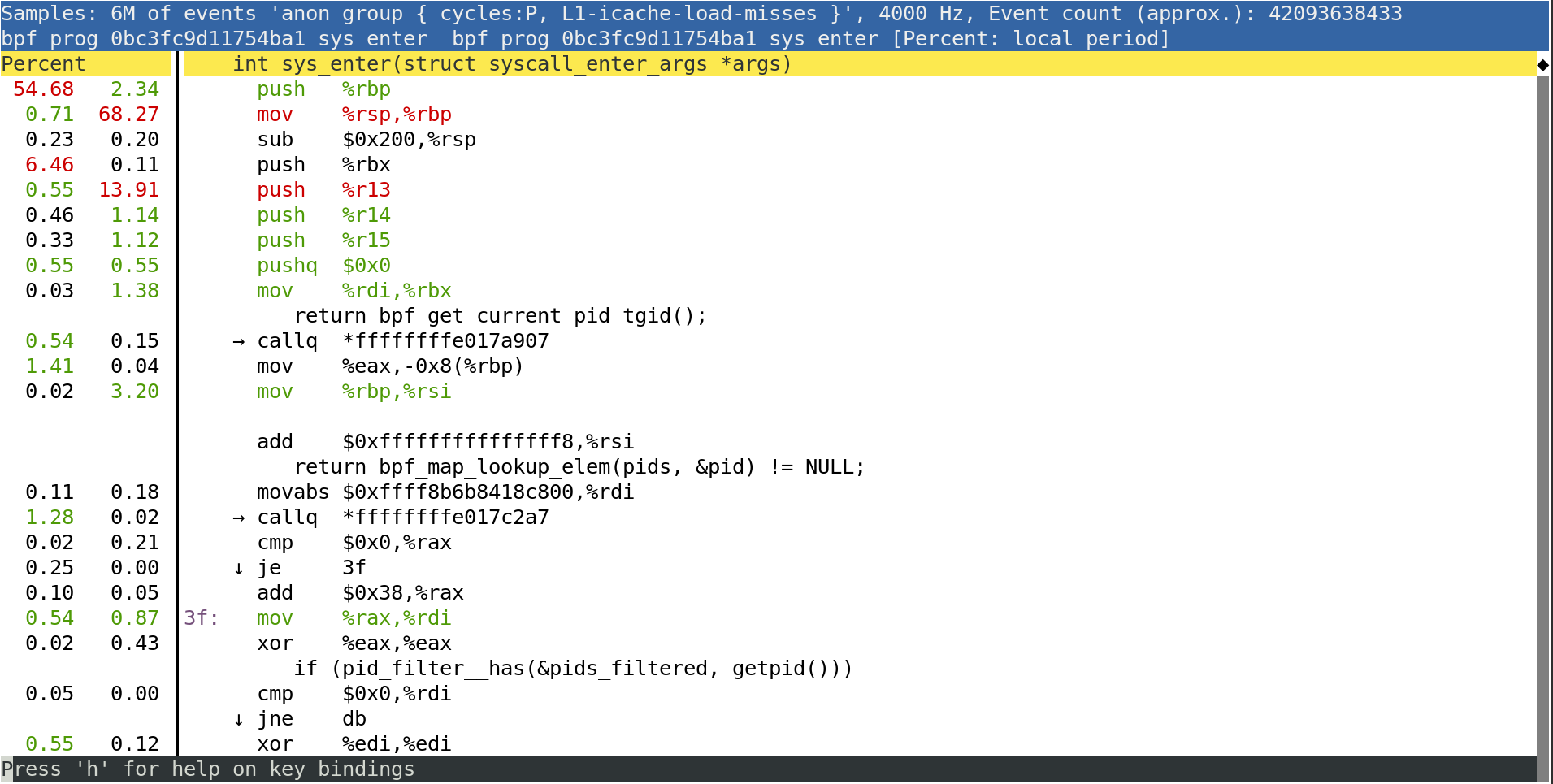

perf annotate

nospectre_v1 + nospectre_v2

perf report investigating XDP

32.46% i40e_clean_rx_irq
28.58% bpf_prog_7372f554109f565f
 6.30% xdp_do_redirect
 3.97% i40e_napi_poll
 3.74% i40e_xmit_xdp_ring
 2.50% dma_direct_sync_single_for_cpu
 2.11% dev_map_enqueue
 2.04% dma_direct_unmap_page
 1.86% default_idle
 1.73% dma_direct_map_page
 1.68% i40e_xdp_xmit
 1.57% __xdp_return
 1.33% i40e_alloc_rx_buffers
 1.18% __dev_map_lookup_elem
 1.07% page_frag_free
 0.89% percpu_array_map_lookup_elem

BPF loader gotchas

bpf_prog_7372f554109f565f
Should use bpf.attr.name
In addition to BPF tag (7372f554109f565f)
bpf_prog_f173133dc38ccf87_sys_enter

perf annotate

# perf annotate --stdio2 bpf_prog_819967866022f1e1_sys_enter
Samples: 40 of event 'cycles', 4 kHz, Ev.count (approx.): 12152834, [pcnt: local period]
bpf_prog_819967866022f1e1_sys_enter() bpf_prog_819967866022f1e1_sys_enter
 69.13         push   %rbp

               mov    %rsp,%rbp
               sub    $0x170,%rsp
               sub    $0x28,%rbp
 19.07         mov    %rbx,0x0(%rbp)
  2.08         mov    %r13,0x8(%rbp)
               mov    %r14,0x10(%rbp)
               mov    %r15,0x18(%rbp)
               xor    %eax,%eax
               mov    %rax,0x20(%rbp)
               mov    %rdi,%rbx
             → callq  *ffffffffd356dda0
  3.03         mov    %eax,-0x148(%rbp)
               mov    %rbp,%rsi
               add    $0xfffffffffffffeb8,%rsi
               movabs $0xffff9d5b7133a400,%rdi

  1.17       → callq  *ffffffffd356f050
  ...

bpf prog dump bytecode

# bpftool prog dump xlated id 4301
int sys_enter_connect(struct syscall_enter_args * args):
; int sys_enter_connect(struct syscall_enter_args *args)
   0: (bf) r6 = r1
   1: (b7) r1 = 0
; int key = 0;
   2: (63) *(u32 *)(r10 -4) = r1
   3: (bf) r2 = r10
;
   4: (07) r2 += -4
; struct augmented_args_payload *augmented_args = bpf_map_lookup_elem(&augmented_args_tmp, &key);
   5: (18) r1 = map[id:2992]
   7: (85) call percpu_array_map_lookup_elem#98896
   8: (bf) r7 = r0
   9: (b7) r0 = 1
; if (augmented_args == NULL)
  10: (15) if r7 == 0x0 goto pc+20
;
  11: (61) r1 = *(u32 *)(r6 +32)
  12: (b7) r8 = 128
; if (socklen > sizeof(augmented_args->saddr))
  13: (25) if r1 > 0x80 goto pc+1
  14: (bf) r8 = r1

bpf prog dump bytecode

; const void *sockaddr_arg = (const void *)args->args[1];
  15: (79) r3 = *(u64 *)(r6 +24)
; probe_read(&augmented_args->saddr, socklen, sockaddr_arg);
  16: (bf) r1 = r7
  17: (07) r1 += 64
; probe_read(&augmented_args->saddr, socklen, sockaddr_arg);
  18: (bf) r2 = r8
  19: (85) call bpf_probe_read#-49200
; return perf_event_output(args, &__augmented_syscalls__, BPF_F_CURRENT_CPU, augmented_args, len + socklen);
  20: (07) r8 += 64
; return perf_event_output(args, &__augmented_syscalls__, BPF_F_CURRENT_CPU, augmented_args, len + socklen);
  21: (67) r8 <<= 32
  22: (77) r8 >>= 32
; return perf_event_output(args, &__augmented_syscalls__, BPF_F_CURRENT_CPU, augmented_args, len + socklen);
  23: (bf) r1 = r6
  24: (18) r2 = map[id:2987]
  26: (18) r3 = 0xffffffff
  28: (bf) r4 = r7
  29: (bf) r5 = r8
  30: (85) call bpf_perf_event_output_tp#-47264
; }
  31: (95) exit
#

bpftop

Suggestion from Alexei
kernel.bpf_stats_enabled
Reuse perf top UI
Synthetic event
Later: Software PMU
Multi column with cycles, etc

kernel.bpf_stats_enabled

# echo 1 > /proc/sys/kernel/bpf_stats_enabled
# ls -la /proc/`pidof perf`/fd | grep bpf-prog
lrwx------. 1 root root 64 Sep  9 16:47 10 -> anon_inode:bpf-prog
lrwx------. 1 root root 64 Sep  9 16:47 11 -> anon_inode:bpf-prog
lrwx------. 1 root root 64 Sep  9 16:47 12 -> anon_inode:bpf-prog
lrwx------. 1 root root 64 Sep  9 16:47 13 -> anon_inode:bpf-prog
lrwx------. 1 root root 64 Sep  9 16:47 14 -> anon_inode:bpf-prog
lrwx------. 1 root root 64 Sep  9 16:47 15 -> anon_inode:bpf-prog
lrwx------. 1 root root 64 Sep  9 16:47 16 -> anon_inode:bpf-prog
lrwx------. 1 root root 64 Sep  9 16:47 17 -> anon_inode:bpf-prog
lrwx------. 1 root root 64 Sep  9 16:47 18 -> anon_inode:bpf-prog
#

bpf prog stats

# cat /proc/`pidof perf`/fdinfo/18
pos:		0
flags:		02000002
mnt_id:		13
prog_type:	5
prog_jited:	1
prog_tag:	29c7ae234d79bd5c
memlock:	4096
prog_id:	298
run_time_ns:	2791232428
run_cnt:	19953635

perf stat

perf targets: pid, tid, cpu, cgroups, etc
One more: BPF
For long running BPF programs
Free running counter
Read at bpf entry/exit
perf stat -b bpf-tag/id/name

perf probe

perf probe -L
Retrieve original bytecode
Instrument it
Reinject it

Intel PT

Address filters
Trace just a BPF prog
Not working right now outside vmlinux
Acording to Adrian Hunter

THE END

https://cilium.io/blog/2018/11/20/fb-bpf-firewall/
https://www.iovisor.org/technology/xdp
Initial BTF doc patch:
http://https://marc.info/?l=linux-netdev&m=154760035404541
BTF dedup:
https://facebookmicrosites.github.io/bpf/blog/2018/11/14/btf-enhancement.html
llvm BTF patch doc:
https://reviews.llvm.org/D53261
pahole's README.btf

BPF is Eating the World, Don't you see?

What this is about

What is eBPF?

How does it look like?

Restricted C

BPF ASM macros

Some eBPF program types

Some eBPF map types

Some eBPF map functions

Some eBPF id functions

Some XDP functions

Fault injection

Infrared decoding

Where is it being used?

XDP

cilium

Tracing

systemd

systemd + eBPF

systemd + eBPF: accounting

systemd + eBPF: traffic

systemd + eBPF: block addresses

How could I see that?

Map dump

eBPF bytecode

eBPF JITed code

eBPF JITed code 2

Facebook's Katran

BTF

sys_bpf & BTF

Pretty Printing of BPF maps

BPF maps

BPF maps: expanded

perf trace

Putting a bpf prog + maps in place

bpftool progs

bpftool maps

Dumping contents of a map

Dumping contents of a map

Dumping contents of a map with BTF

bpftool map lookup

Generating BTF info

pahole BTF encoder

Encoding

DWARF ELF sections

pahole using DWARF

pahole encoding BTF

BTF ELF section

clang 8 generating BTF

pahole BTF loader

pahole decoding BTF

kernel loading BTF

btf_map(name)

kernel validates BTF

Some validations performed

kernel validating BTF (excerpts)

btfdiff

fullcircle

Encoding multiple CUs

Deduplication

vmlinux BTF in kbuild

pahole

__alignment__(N))

CO-RE - Compile once, run everywhere

Further BTF uses

Visibility of BPF in perf

PERF_RECORD_KSYMBOL

PERF_RECORD_BPF_EVENT

perf record

What is there?

What to do with that

perf report investigating XDP

BPF loader gotchas

bpf prog dump bytecode

bpf prog dump bytecode

bpftop

kernel.bpf_stats_enabled

bpf prog stats

perf stat

perf probe

alignment(N))
